Achieve the H12-831_V1.0-ENU Exam Best Results with Help from Huawei Certified Experts
Provide H12-831_V1.0-ENU Practice Test Engine for Preparation
Huawei H12-831_V1.0 (HCIP-Datacom-Advanced Routing & Switching Technology V1.0) Certification Exam is a comprehensive test that evaluates the knowledge and skills of IT professionals in advanced routing and switching technologies. HCIP-Datacom-Advanced Routing & Switching Technology V1.0 certification is designed to equip professionals with the necessary skills to design, deploy, and maintain complex networks using Huawei routing and switching products. H12-831_V1.0-ENU exam covers a wide range of topics, including network design principles, routing protocols, network security, and advanced switching technologies.
Huawei H12-831_V1.0 exam is a great way for IT professionals to demonstrate their expertise and knowledge in advanced routing and switching technologies. By passing H12-831_V1.0-ENU exam, professionals can earn the HCIP-Datacom-Advanced Routing & Switching Technology V1.0 certification, which is highly valued in the industry. HCIP-Datacom-Advanced Routing & Switching Technology V1.0 certification can help IT professionals advance their careers and increase their earning potential. With extensive knowledge of advanced routing and switching technologies, IT professionals can help organizations build and maintain secure, high-performance networks that meet the demands of today's business environment.
NEW QUESTION # 72
There is the concept of forwarding equivalence class FEC in MPLS, which of the following description is wrong? (Multiple choice)
- A. A forwarding equivalence FEC will be assigned a unique label value on all routers
- B. The packets of the same FEC will be treated differently in the MPLS network
- C. MPLS classifies packets with the same forwarding processing method into one category, which is called FEC
- D. The division of FEC is very flexible. It can be based on any combination of source address, address, source port, destination port, protocol type or VPN, etc.
Answer: A,B
NEW QUESTION # 73
On the network shown in the figure, the DHCP server function is enabled on GE0/0/0 of R2, and the address pool is an interface address pool.
When GE0/0/0 and GE0/0/1 of R1 function as DHCP clients, only one interface can obtain an IP address by default.
Options:
- A. TRUE
- B. FALSE
Answer: A
Explanation:
Comprehensive and Detailed In-Depth Explanation:
Understanding the DHCP Process in This Scenario:
* DHCP Server on R2:
* The DHCP server is configured on interface GE0/0/0 of R2.
* The address pool is an interface address pool, meaning that IP addresses are allocated from the subnet of GE0/0/0 (i.e., 10.0.12.0/24).
* DHCP Clients on R1:
* Both interfaces (GE0/0/0 and GE0/0/1) on R1 are set as DHCP clients, meaning they will send DHCP DISCOVER messages to obtain an IP address dynamically.
* Why Only One Interface Gets an IP Address?
* Interface address pools in Huawei devices assign only one IP address per MAC address (which is typically the router's MAC).
* Since both interfaces belong to R1, they share the same MAC address when making a DHCP request.
* As a result, the DHCP server on R2 only assigns one IP address to the first requesting interface.
* The second request is ignored or denied by the DHCP server due to the duplicate MAC address issue.
Key Takeaways:
* Huawei routers using an interface-based DHCP address pool assign only one IP per MAC address.
* Since both interfaces on R1 have the same MAC, only one gets an IP.
* This behavior is expected in Huawei's HCIP-Datacom-certified DHCP configurations.
HCIP-Datacom-Advanced Routing & Switching Technology References:
* Huawei HCIP-Datacom Official Certification Guide, Chapter on DHCP Server and Client Configurations.
* Huawei Datacom Configuration Guide, Section on Interface Address Pools and Address Assignment Limitations.
* Huawei Enterprise Networking Training Materials, DHCP Relay and DHCP Server Behavior.
NEW QUESTION # 74
After basic QinQ is configured on an interface of a switch, the switch adds the default VLAN tag of the interface to packets only when the interface receives tagged packets. In this way, the VLAN space is expanded.
- A. TRUE
- B. FALSE
Answer: B
NEW QUESTION # 75

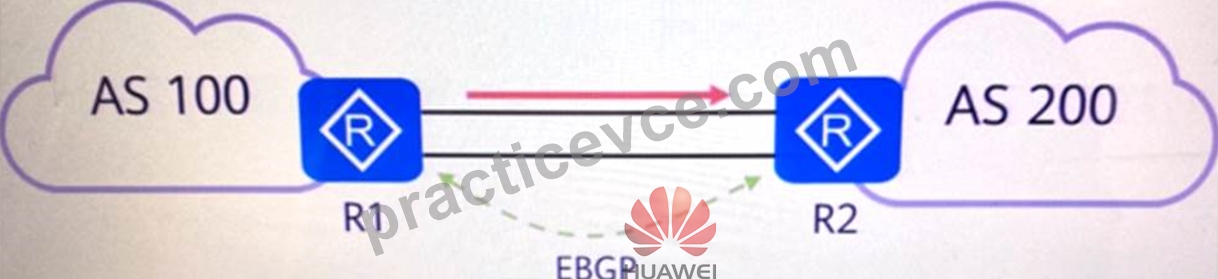

As shown in the figure, network administrator A on the R1 router, after modifying the MED value of the routing entry sent to R2 through the routing policy, can control the path of traffic entering AS100.
- A. TRUE
- B. FALSE
Answer: A
NEW QUESTION # 76
Regarding MP-BGP, whici of the following description is incorrect?
- A. MP-BGP needs to assign private network labels to VPNv4 routes
- B. MP-BGP's message type and VPNv4 routing policy are the same as BGP-4
- C. MP-BGP advertises VPNv4 routes through two attributes: MP_REACH_NLRI and MP_UREACH_NLRI
- D. When the PE and CE exchange routes through BGP, you need to create a BGP process for each VPN instance on the CE
Answer: D
NEW QUESTION # 77
Which of the following are the advantages of VLAN aggregation? (Multiple choice)
- A. Increased flexibility of addressing
- B. Reduce the waste of IP addresses
- C. Increased the number of available MLANs
- D. Realize the isolation of broadcast domains between Sub-VLANs
Answer: B,D
NEW QUESTION # 78
Which of the following information can the DHCP binding table contain?
- A. port andUDPport
- B. MA, Caddress
- C. IPaddress
- D. lease time
Answer: B,C,D
NEW QUESTION # 79
Which of the following is the least likely cause of a VRRP backup group dual-active failure?
- A. low priorityVRRPThe backup group will receiveVRRPAnnounce packets are discarded as illegal packets
- B. Master Equipment1send in seconds1announcement message
- C. both endsVRRPbackup groupIDdifferent
- D. transmissionVRRPLink failure of advertisement message
Answer: B
NEW QUESTION # 80
What types of Link Types are included in the Router LSA in OSPF? (Multiple choice)
- A. P-2-P
- B. TransNet
- C. StubNet
- D. Vlink
Answer: A,B,C,D
NEW QUESTION # 81

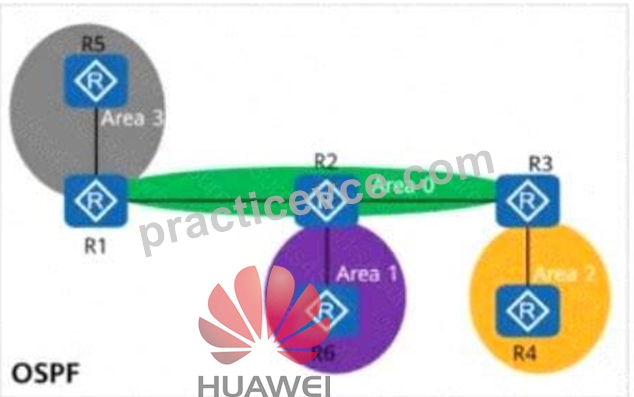

On the OSPF network shown in the figure:
* Area 1 is a common area.
* Area 2 is a totally NSSA (Not-So-Stubby Area).
* Area 3 is an NSSA.
* R5 imports the external route 10.0.5.5/32 into OSPF.
Which of the following routers have the route 10.0.5.5/32 in their routing tables?
- A. R6
- B. R4
- C. R3
- D. R2
Answer: A,C,D
Explanation:
Comprehensive and Detailed In-Depth Explanation:
Understanding OSPF Areas and Route Propagation in the Network:
* OSPF Area Types in the Question:
* Area 0 (Backbone Area): Connects all areas and distributes routing information.
* Area 1 (Standard Area): Regular OSPF area that can receive and forward external routes.
* Area 2 (Totally NSSA - Totally Not-So-Stubby Area):
* Does not allow external routes except for a default route injected by the ABR.
* Area 3 (NSSA - Not-So-Stubby Area):
* Allows external routes as Type 7 LSAs but does not accept Type 5 LSAs.
* How External Routes Are Advertised in This Scenario:
* R5 (in Area 3) imports 10.0.5.5/32 as an external route into OSPF.
* Since Area 3 is an NSSA, the external route is advertised as a Type 7 LSA (not Type 5).
* The ABR (R1) converts the Type 7 LSA into a Type 5 LSA and advertises it into Area 0.
* Once in Area 0, this Type 5 LSA can be distributed to other areas except totally stubby or totally NSSA areas.
Route Distribution Analysis:
* R5 (Area 3) # R1 (Area 0, ABR):
* R5 generates a Type 7 LSA for 10.0.5.5/32.
* R1 (ABR) converts this Type 7 LSA into a Type 5 LSA and injects it into Area 0.
* R2 (Area 0) # R3 (Area 0):
* Since Area 0 allows external Type 5 LSAs, R2 and R3 receive 10.0.5.5/32.# R2 and R3 have the route.
* R6 (Area 1) # Connected to Area 0:
* Area 1 is a common area, meaning it can receive external Type 5 LSAs.# R6 has the route.
* R4 (Area 2 - Totally NSSA):
* Totally NSSA areas do NOT accept Type 5 or Type 7 LSAs.
* Instead, they receive only a default route from the ABR (R3).
* Since R4 does not receive external routes explicitly, it does NOT have 10.0.5.5/32.# R4 does NOT have the route.
Final Conclusion:
* # R2, R3, and R6 have the route 10.0.5.5/32.
* # R4 does not have the route because Area 2 is a Totally NSSA and only gets a default route.
Thus, the correct answer is:# R2, R3, and R6 have the route 10.0.5.5/32 in their routing tables.
NEW QUESTION # 82
What is the value of OSPF and BFD linkage?
- A. Through the BFD detected at the millisecond level, the OSPF status is associated to achieve the purpose of OSPF quickly inductive link state
- B. Any change in the BFD status will not affect the OSPF neighbor status
- C. The sending interval of BFD packets can reach the millisecond level, which is slower than the OSPF inductive link state
- D. The hello sending interval of OSPF is at the second level, which is faster than BFD inductive link state
Answer: A
NEW QUESTION # 83
Network administrator A wants to use the IP Prefix List to match a specific route entry. Which of the following routes will Matched by the IIP Prefix List in the figure?
- A. 10.0.2.0/24
- B. 10.0.0.0/24
- C. 10.0.0.1/30
- D. 10.0.1.0/24
Answer: B,C
NEW QUESTION # 84
When OSPFv2 evolves to OSPFv3, the format and function of LSA are exactly the same, except that the network layer address in LSA changes from IPv4 to IPv6.
- A. TRUE
- B. FALSE
Answer: B
NEW QUESTION # 85
Since BGP is an EGP routing protocol, BGP routing policies can only be deployed between EBGP neighbors.
The routing policy deployed between IBGP neighbors is invalid.
- A. False
- B. True
Answer: A
NEW QUESTION # 86
LDP messages are exchanged between LSRs running the LDP protocol. LDP messages can be divided into four types according to their functions. Which of the following is not a message type of LDP?
- A. label exchange message
- B. discovery message
- C. conversation message
- D. announcement message
Answer: A
NEW QUESTION # 87
A campus deploys both IPv4 and IPv6 networks for service testing, and runs IS-IS to realize network interconnection. The IS-IS routing protocol has good scalability and is widely used in the existing network. Which of the following statements is true about IS-IS scalability?
- A. IS-ISuseTLVstructure builds the message so thatIS-ISMore flexibility, flexibility and scalability
- B. forIS-ISIn terms of adding new features, only adding newTLVJust
- C. IS-ISto supportPV6to addTLVcarryPv6Address information
- D. N LPIDYesIS-ISto supportIPv6an addedTLV
Answer: A,B,C
NEW QUESTION # 88
In an MPLS network, SR running the DP protocol exchange LDP messages to realize functions such as neighbor discovery, session establishment and maintenance, and label management. In order to ensure the reliability of message delivery, all sending and receiving of LDP messages must be based on TCP connections.
- A. TRUE
- B. FALSE
Answer: B
NEW QUESTION # 89
......
